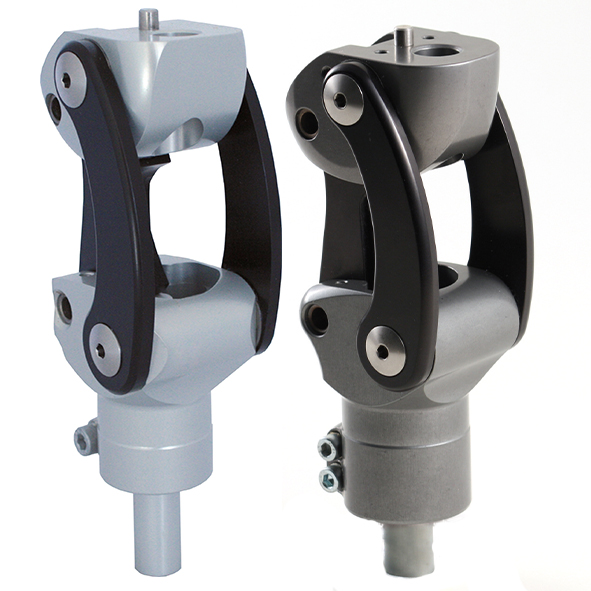

1m102
The unique alignment and axis geometry of the 1M102 offer increased safety during
stance phase.
• Socket rotation adjustment: ± 15°.
• Friction adjustment.
• Extension assist adjustment.
• Possible fitting of long stumps and knee disarticulations.
• Available in four versions; 1m102, 1M102V, 1m102-P6 and 1M102V-P6
• 1M02V: its optional lock ensures enhanced safety on difficult or uneven grounds, or during rehabilitation phase. The optional lock is operated by the patient himself.
• Material: Alumunium
• Max. flexion: 160 °
TECHNICAL FEATURES
1m102
Max. User Weight: 100 kg
Weight: 565 g
Total Height: 184 mm
Build Height: 108 mm
Optionnal lock: No
Distal Adapter: Tube Ø 30 mm
1m102V
Max. User Weight: 100 kg
Weight: 575 g
Total Height: 184 mm
Build Height: 108 mm
Optionnal lock: Yes
Distal Adapter: Tube Ø 30 mm
1m102-P6
Max. User Weight: 125kg
Weight: 600 g
Total Height: 184 mm
Build Height: 113 mm
Optionnal lock: No
Distal Adapter: Tube Ø 34 mm
1m102V-P6
Max. User Weight: 125kg
Weight: 625 g
Total Height: 184 mm
Build Height: 113 mm
Optionnal lock: Yes
Distal Adapter: Tube Ø 34 mm
Modell
| Art.nr. | Modell |
|---|---|
| 756510000 | 1m102 4-AXIS KNEE |
| 756520000 | 1M102V 4-AXIS KNEE W OPT LOCK |
| 756600000 | 1M102-P6 4-AXIS KNEE 125 KG |
| 756610000 | 1M102V-P6 4-AXIS KNEE OPT LOCK |
